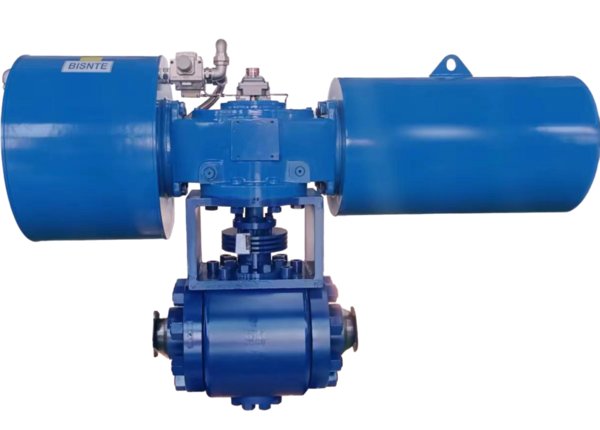

Product name: metal seated wear-resistant ball valve
Connection type: RF Flanged (can be customized, welded, etc)
Material: F91 (can be customized according to customer needs, such as, carbon steel, stainless steel, etc)
Body material: SS304/SS316/SS316L
Port size: NPS 1"—60" ; DP25— 1500 (can be customized according to customer needs)
Working pressure: 0-42.0MPa, (can be customized, Class150～Class2500、PN20～PN420)
Drive: manual, pneumatic, elctric, electro-hydraulic,etc
Application: petroleum, chemical, natural gas, petrochemical, coal chemical and other industries
Standard or Nonstandard: ANSI BS DIN JIS Ect
Design Standard: ASME B16.34 API 6D
Seal Material: Metal Seal
Feature: Wear Resistance
Design features:
Double eccentric design: forced sealing and tight shut-off
Non friction switch: reduces wear and extends lifespan
Full passage without dead space: less likely to accumulate sediment and reduce scaling
Spherical full hardening: resistant to impact and wear, protecting the sphere
High temperature anti lock braking: unique design and patented technology
Self cleaning function: fluid flushing, automatic cleaning
Nominal pressure: Class600~Class2500
Nominal diameter: 1 "to 48"
Temperature range: -46 ℃~425 ℃
The products are widely used in chemical industry and petrochemical industry.
